Contact issue with MCD ceramic on PHI 5600 XPS system

This blog post will show you how to repair a damaged 16 channel MCD anode ceramic on a PHI 5600 X-ray Photoelectron Spectrometer system.

The MCD anode ceramic is part of the MCD (multi channel detector) assembly. The anode ceramic has 16 channels where electrons with slightly different energies are counted. The 16 channel detector offers a higher count rate as compared to the PSD (position sensitive detector) and single channel electron multipliers that were used on earlier XPS systems.

There are surface mount resistors on the MCD anode ceramic that couple the positive (POS) voltage to the individual channel output ceramics. One of these surface mount resistors in particular provides the pathway for the multiplier POS voltage to the channel (chevron) plates. The POS contact is on both sides of the ceramic and they are connected via a gold plated through hole.

It is possible that over time (or when the chevron plates are replaced) that the gold plated pad can become electrically open in which case there would be no voltage applied to the chevron plates and, therefor, no XPS signal.

The picture below shows the location of the POS voltage gold plated through hole.

In this case, the gold was worn away from the gold plated through hole which resulted in an open circuit and no data. The picture below shows a close up of the gold plated through hole and the open area on the ceramic.

Besides not getting any data this problem was also evident as the resistance between the POS and NEG connections was open instead of the normal 15 to 20 meg ohms.

A new MCD anode ceramic costs about $700.00 and so I decided to first try and repair the contact using a thin strip of oxygen free copper foil

First I used a ceramic cutting wheel to flatten out the out edge of the ceramic to make room for the copper foil. Then I cut the small piece of copper foil so that it would cover the pad by the resistor and then be able to bend over the other side of the ceramic so that it could contact the outer gold ring. I pressed the copper so that it would be as flat as possible. Since there is a contact on both sides of the ceramic in the areas that the copper foil will cover, those contacts will hold the copper foil in place.

After reassembling the MCD assembly the multiplier POS to NEG resistance was 20 meg ohms, which is correct.

This repair method works well if you do not have a replacement MCD ceramic handy.

The PHI part number for the 16 channel anode ceramic is 619102 and the price as of January 2025 is $729.00

For more information on installing the Chevron plates into the MCD assembly refer to this blog post – https://www.rbdinstruments.com/blog/5600-xps-system-mcd-channel-plate-replacement-procedure/

5600 XPS system MCD channel plate replacement procedure.

This procedure will explain how to replace the channel plates (technically, they are Chevron plates) in the MCD detector used on Physical Electronics (PHI) 5600, 5700 and 5800 X-ray Photoelectron spectrometers. You may also want to check out our blog post on checking the MCD pins continuity.

Set up a work area with some aluminum foil and lint free cloths.   Vent the system.

Mark the MCD feedthrough flange to confirm the orientation of the flange when you replace it later.

Mark flange

Remove most of the bolts and nuts that secure the MCD feedthrough flange to the analyzer.  The MCD feedthrough flange has some springs on the inside so there will be some tension when you remove the flange.   There are 3 studs that are used to guide the MCD feedthrough flange when it is removed or installed.

Remove the last few nuts or bolts and carefully lower the MCD feedthrough flange and place it on the aluminum foil.  Incidentally, most food grade aluminum foil has oil on it.  If possible, use UHV compatible foil when working with electron optics.

Remove MCD feedthrough flange

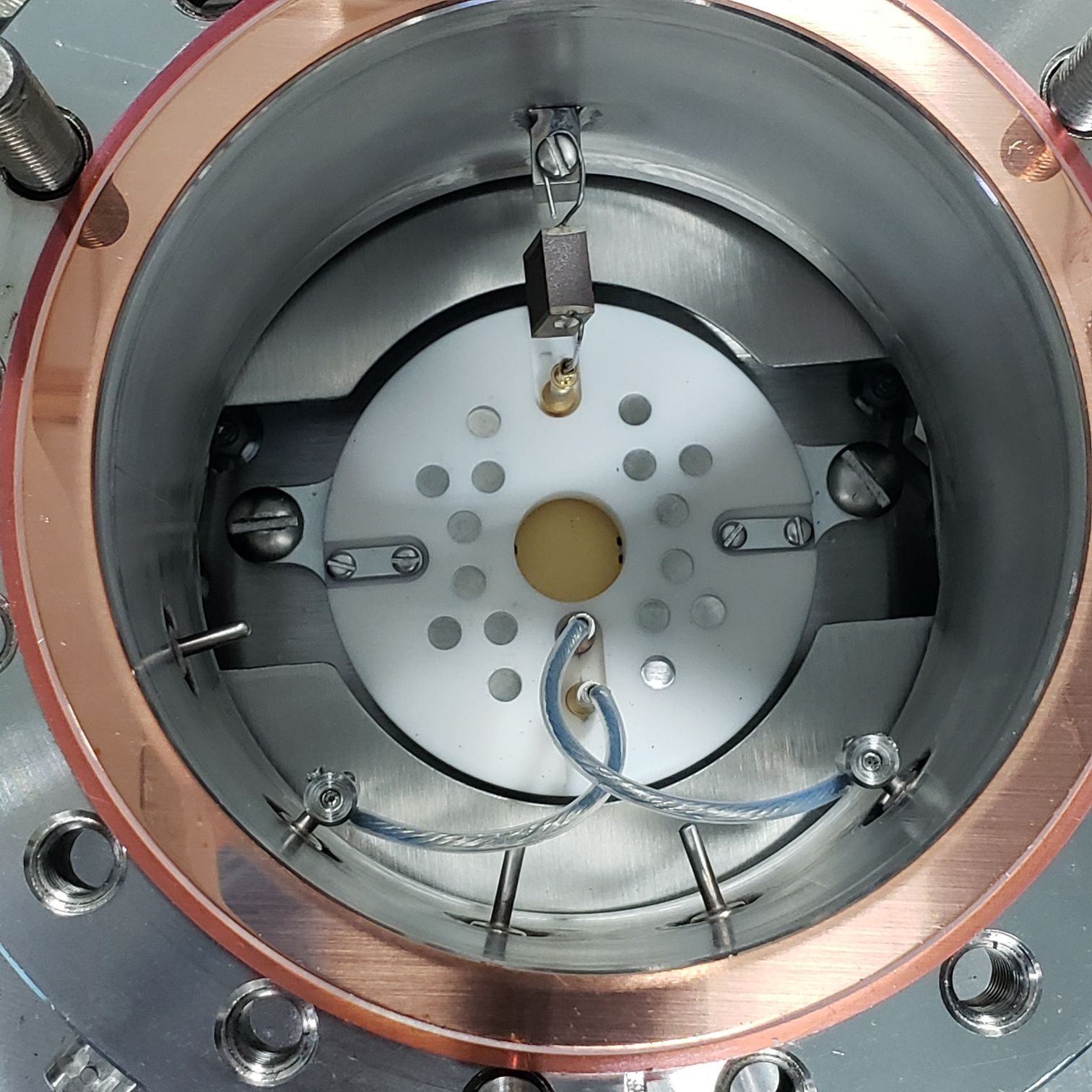

The MCD assembly is located inside the 6″ CF flange where you just removed the MCD feedthrough flange from.   You can remove one of the analyzer braces in order to gain better access to the MCD assembly.

MCD assembly

At this point put on a pair of gloves as you will be working inside the analyzer and want to prevent oil contaminator from your hands. Use tools that have been cleaned with Isopropanol or Methanol.

Remove the screw that holds the capacitor in place.

Remove capacitor screw

Remove the capacitor by pulling on the pin that is connected to the MCD assembly.  Do not pull on the capacitor.  The pin wire is silver soldered to the capacitor and it can come off easily, so be very careful with the capacitor.

Remove capacitor by pulling on the pin connector

Remove the POS and NEG pins from the MCD assembly.  Just pull up on the pins, keep the wires attached to the SHV feedthrough pins.

Remove POS and NEG pin connectors

The MCD assembly is held in place with 2 slotted screws.  Remove one of the screws completely. Be careful as it is easy to drop.

Loosen the second screw and then reach up and hold the MCD assembly as you remove the screw.   Ease the MCD assembly down and out of the 6″ CF flange.

Remove MCD assembly

Set the MCD assembly on a clean working surface.

Pull up on the pins and insert a small Allen wrench or rod to hold the pins in place.  The pins are spring loaded and by inserting a small Allen wrench or rod into the holes in the pins, that will prevent the pins from contacting the plates or 16 channel ceramic when replacing the plates.

Insert Allen wrenches or rods

Remove the two inner slotted screws.

Remove inner two screws

Hold the MCD assembly as you rotate it 180 degrees so that the grid screen is facing up.

Hold together and rotate so that grid is facing up

Remove the grid screen.  Set it to the side.

Remove the grid screen

Remove the ceramic. Set it next to the grid screen.  As you remove parts, set them down next to each other in sequence. That will make it easier to reassembly the parts in the correct order.

Ceramic with grid screen removed

Remove the gold spacer. Sometimes that part will stick to the bottom of the ceramic.

Ceramic and gold spacer removed

Remove the Teflon tubes

Remove the Teflon tubes

Remove the top plate.

Remove the top plate

Remove the second plate.  Note that the plates have a little dot on them.  Those dots need to face each other.  So, the bottom plate has the dot facing up, and the top plate has the dot facing down.

Dot on plate, near the hole
Remove the bottom plate

Use some clean air or nitrogen to blow off the 16 channel ceramic.  Feel free to dust off the MCD assembly and plates frequently.  Dust is to be avoided as much as possible.

16 channel ceramic

Install the new bottom plate. It sits on the gold spacer which is on top of the 16-pin ceramic.  The hole in the plate needs to line up with the pin.  The pin is centered in the hole in the plate. The little dot on the plate needs to face up.

Install bottom plate. Dot up.

Install the new top plate.  The dot needs to face down and the pin should be centered in the hole in the plate.

Install top plate, dot facing down

Install the gold spacer.  The tab on the spacer should be above the pin.

Install gold spacer. Tab over pin.

Install the Teflon tubes.

Install Teflon tubes

Install the ceramic over the Teflon tubes.  The top of the tubes should be flush with the ceramic.

Install ceramic

Set the grid screen on top of the ceramic.

Position grid screen

While holding the grid screen and ceramic in place, rotate the MCD assembly 180 degrees so that the pins face up. Since the screw are not get installed, the only thing holding the grin screen and ceramic in place is you.

Rotate MCD assembly so that pins face up

Install the two screws to secure the grid screen.  You may need to rotate things just a little bit.  Tighten the screws firmly but not too tightly or you may crack the ceramic.

Install screws

Remove the Allen wrench or rods from the pins.  Rotate the pins a little bit to make sure that they are seated.

Remove Allen wrenches or rods from pins

Measure the resistance between the POS and NEG pins.  You should have 15 to 24 meg ohms.  From the other pin to POS or NEG should be about 1 Meg ohm.

Measure resistance between POS and NEG

The MCD assembly is now ready to install back into the analyzer.

Before you insert the MCD assembly, prepare one of the screws for mounting.  A pronged grabber works well as does a starter screw driver.  In a pinch you can use a regular screw driver with a little bit of tape to hold the screw on.  The tape needs to stick to the screwdriver so that it all comes out when you remove the screwdriver.

Insert the MCD assembly (it can only go in one way or else the screw will not line up) and rotate it slightly to make sure that it is seated properly.  Tighten the one screw to where it is just snug.

Install the second screw and tighten it to where it is just snug.

Slightly rotate the MCD assembly to make sure that it is seated properly and then tighten both screws firmly.

Reconnect the POS and NEG pins.  Refer to the drawing to make sure that you do not insert the pins backwards.  Also make sure that the POS and NEG wires are centered as the MCD feedthrough flange will need to clear the POS and NEG pins.

POS and NEG pin to SHV connectors

Insert the capacitor pin. Be careful not to stress the capacitor.

Reattach the capacitor wire screw and tighten the screw.  The capacitor should be perpendicular (not tilted) as the MCD feedthrough flange will need to clear it.

POS, NEG and capacitor reconnected

Remove the used 6″ copper gasket.

Install a new 6″ copper gasket on the MCD feedthrough flange.

Carefully line up the MCD feedthrough flange and slide it onto the 3 guide studs. Install the 3 nuts to hold the MCD feedthrough flange in place and then slightly rotate the flange to make sure it is seated.  The springs on the MCD feedthrough flange fit into the 16 holes in the MCD ceramic and press against the metal discs which in turn make contact with small capacitors inside the MCD assembly.

Install the bolts and lightly tighten the MCD feedthrough flange.

Measure the capacitance of all of the pins on the MCD feedthrough with respect to the vacuum chamber.  The four center pins should read approximately 100 pf (open).  All of the other pins should read 250 to 300 pf.   If not, you need to drop the MCD feedthrough flange down and inspect to see where it is hanging up.  Sometimes the spring pins do make contact with the MCD assembly and need to be adjusted slightly.

Once you have the correct capacitance on all of the pins, tighten all of the nuts and bolts.

The vacuum chamber is ready to pump down and baked.

Installation complete.

Note: Set the MCD multiplier voltage to 1800V in the software so that after the bake out you start outgassing the new plates at a lower operating voltage.

Here is a side view of the MCD assembly.
