miniZ Water Vapor Desorption System

Water vapor desorption and oxidative hydrocarbon removal system for compact vacuum chambers.

miniZ

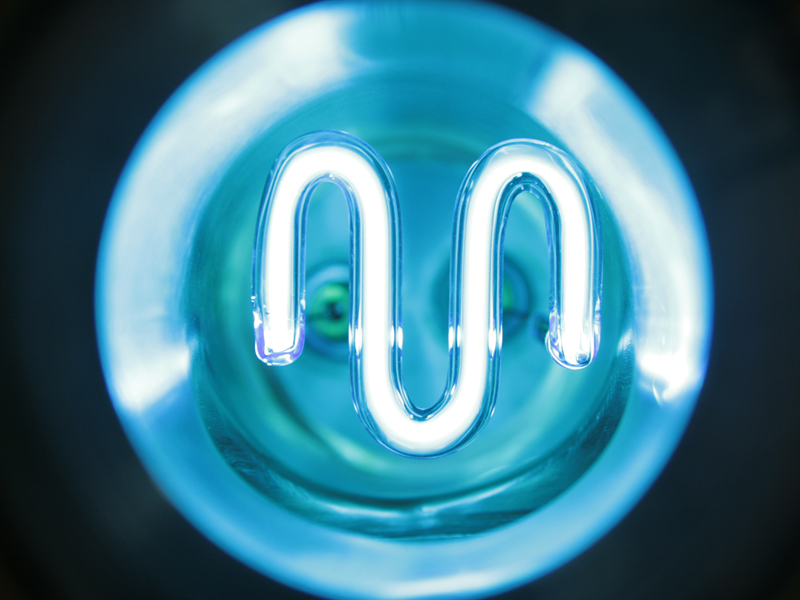

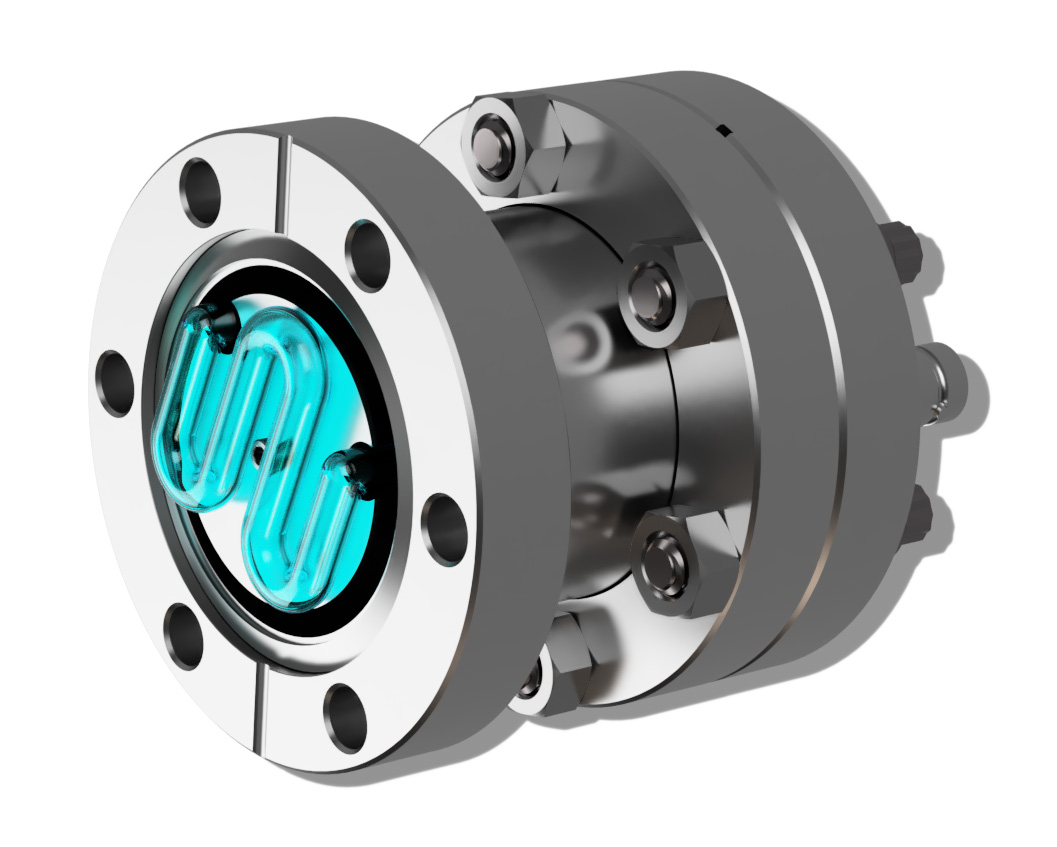

The miniZ is the latest addition to the RBD Instruments line of water vapor desorption / oxidative hydrocarbon removal systems. This water vapor desorption system comprises a high power UVC emitter that fits inside a standard 1.5" I.D. vacuum chamber tube and a compact power supply which mounts directly to the 2.75" CF flange.

The miniZ is ideal for solving water vapor problems in compact vacuum chambers such as the Kimball Physics Multi-CF line of spherical chambers, mini ALD chambers, pressure cells and load locks.

The miniZ power supply is simple to use – just turn it on when you start pumping! A remote ON/OFF option is available if you want to operate the miniZ by a process controller or set point.

Available in 2.75"and 4.5" CF flange sizes.

Base package: miniZ emitter mounted on 2.75’ (70mm) CF flange, controller with universal voltage input (specify your voltage) power supply, and manual.
Optional accessories: Remote turn on option.

Complete configuration and ordering information...





3kV IRB System 3kV IRB System

Technical Information

185nm UVC radiation provides the correct wavelength of energy to desorb water vapor molecules from the chamber walls and results in faster chamber pump down times and lower ultimate vacuum.

Produces 350 uW/cm2 @ 6cm from end of emitter (2.75" flange)

For more information on water vapor and it's effects on vacuum chambers, please see this collection of articles (compiled by Normandale Community College) by the late Phil Danielson (formally of The Vacuum Lab).


miniZ Datasheet
miniZ Dimensions
miniZ 2.57in/70mm Nipple Specs (STEP file)
miniZ Emitter Spectrum

Manuals
miniZ Operation Manual
miniZ Safety Information and General UV Safety Information


Application Notes and Whitepapers



Demo Video

Ordering Information

Request Quote / Info



Part Number Description
MINIZ275CFPR Mini-Z Water Vapor Desorption System, Includes Emitter mounted on 2.75" (40mm) Flange and Power Supply.
Specify KF or CF flange.
MINIZ275EMIPR Mini-Z 2.75" (40mm) CF or KF-40 Flange Emitter Assembly. Specify KF or CF flange.
MINIZ-CTLPR Mini-Z Power Supply. Specify country-specific power plug type.
MINIZ45CFPR Mini-Z Water Vapor Desorption System Includes emitter mounted on 4.5" (63mm) Flange and Power Supply.
Specify KF or CF flange.
MINIZ45EMIPR Mini-Z 4.5" CF or KF-63 Flange Emitter Assembly. Specify KF or CF flange.
MINIZ-RemotePR 24V DC Remote Option for MiniZ.
